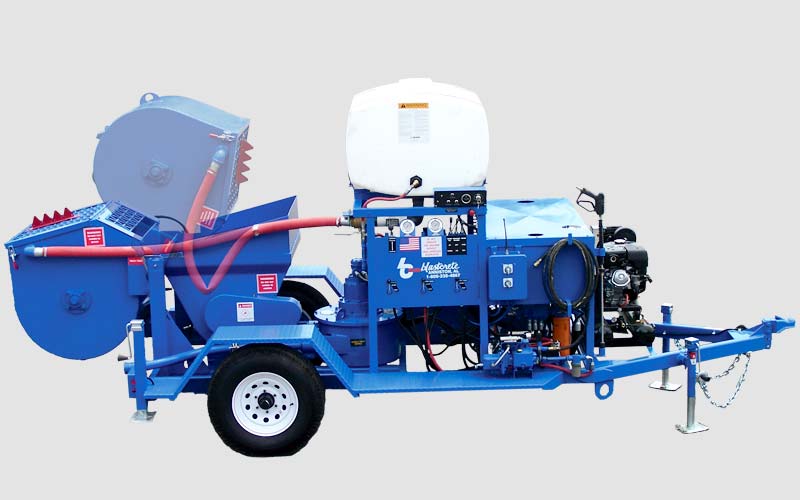

Blastcrete D3522 Mixer / Pump
|
|
The D3522 Mixer/Pump is composed of our D3522 2-inch hydraulic squeeze pump with infinitely variable speed from 0-6 cubic yards per hour, 9 cu. ft. capacity hydraulic spiral mixer with hydraulic dump, hydraulic agitator in the receiving hopper, and mounted on a high speed single axle trailer with lights and electric braking package. The D3522 Mixer/Pump's primary wear part is the rubber pumping tube that can be replaced in 20 minutes.
|
| Features |
- 9 cu.ft. Hydraulic Spiral Mixer with Hydraulic Dump and Clean Out Door
- 12 cu.ft. Receiving Hopper with Agitator and Clean Out Door
- Reliable 29 HP Kubota Water Cooled Diesel
- Simple 2" Hydraulic Squeeze Pump Drive by Heavy Duty Planetary Gearbox
- Lowest Cost Pump to Purchase, Own and Operate
- Longest Lasting Pumping Tubes in the Industry
|
|
| |
| Power Options |
|
Specifications |
- Kubota V1505 29 HP Water Cooled Diesel
- 20 HP Electric Motor with Starter and Disconnect
Options
- Pendant or Wireless Remote
- 150 gallon Water Tank with 2" Flow Meter
- Spare Tire Mounted
- Hydraulic Pressure Washer
- Dual Axles
- Air Compressor Mounted
|
|
- Length — 204"
- Width — 88"
- Height of water tank — 89"
- Height Mixer/dump position — 86"
- Charging height — 48"
- Output capacity — 0 to 6 YPH
- Mixer capacity — 9 cu. ft.
- Receiving hopper capacity — 12 cu. ft.
|
|
