HYDRAULIC PLACING BOOM

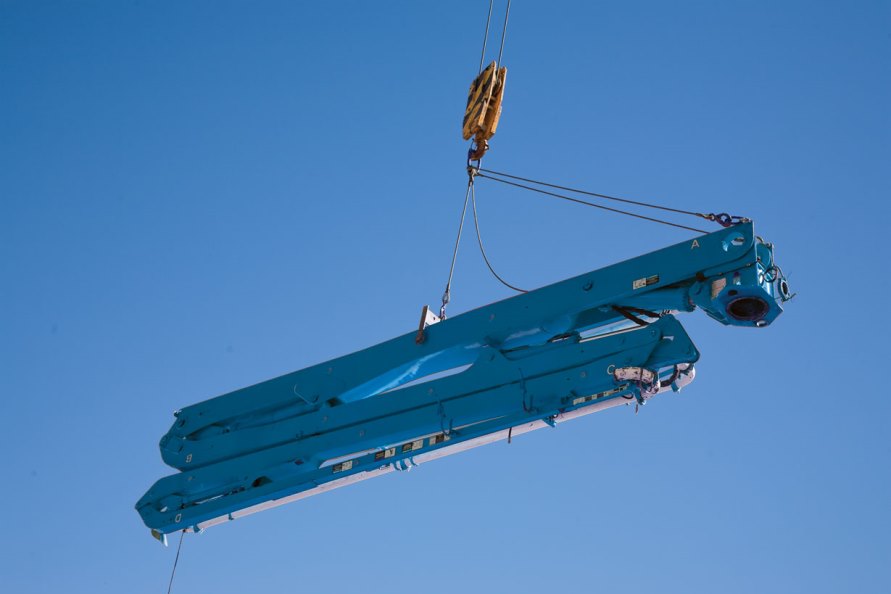

Hydraulic Placing Boom












Concrete Placement Boom
The use of stationary concrete booms with static concrete pumps is increasing popular in today’s construction industry, offering practical and systematic solution for concrete distribution in inner city sites where space is at a premium.

Putzmeister MX 32-T
MX placing booms with counterweight are the ideal solution for climbing formwork in particular. They are well balanced and so minimise the pump torque acting on the climbing formwork. The boom with counter-weight has even proved that it is capable of operating extremely well at great freestanding heights

  • Freestanding height of maximum 22 m.
  • Frames for fixing of the boom in floor or shaft
  • Easy operation of the hydraulic climbing device
  • Operation of the placing boom with cable or remote control possible
  • Plugged together Platform when connecting up the boom and safe access for service
  • Quick release system of the column and the boom for easy mounting
  • Satellite system possible thanks to the quick release system (1 boom but various tubular columns in the building)
  • Divided boom reduces the weight of the boom parts
  • Horizontal reach : 31.6 m.
  • Vertical reach : 31.4 m
  • Depth of reach : 27.7.4 m
  • Articulated sections : 4 arms.
  • Slewing range : 365 deg°v
  • Concrete feeding pipe : DN 125 mm pipeline rated for 85 bar max. pressure.v
  • Length of concrete hose : 4 m.
  • Total weight (Approx.) : 8500 kgs.

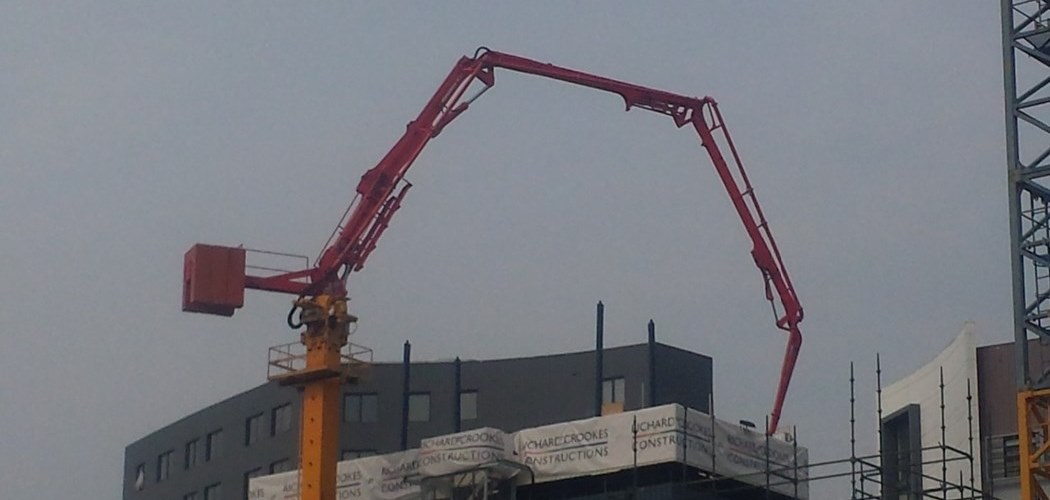

Application Gallery
