The use of stationary concrete booms with static concrete pumps is increasing popular in today’s construction industry, offering practical and systematic solution for concrete distribution in inner city sites where space is at a premium.

ACME DRV 12 C
This is a dual unit for horizontal and vertical application, with the unique feature of being able to lift and lower the second arm by the operation of a hydraulic hand pump, makes it easier to place the concrete on walls, columns and floor slabs, at different floor levels.

  • Horizontal reach : 12 m.
  • Articulated sections : 2 arms.
  • Slewing range : 360 deg°
  • Concrete feeding pipe : DN 125 mm pipeline rated for 85 bar max. pressure.
  • Length of concrete hose : 3 m.
  • Concrete area : 450 m2
  • Dimensions (LxWxH) : 9515 x 2300 x 2160 mm
  • Hydraulic cylinder with pump to lift the boom.
  • Extensible legs up to 500 mm.
  • Spirit Levellers strategically placed in the boom outriggers.
  • Outriggers with safety locks and adjustable height of 350 - 400 mm.
  • Each outrigger supports a vertical load bearing capacity of 2670 kgs.

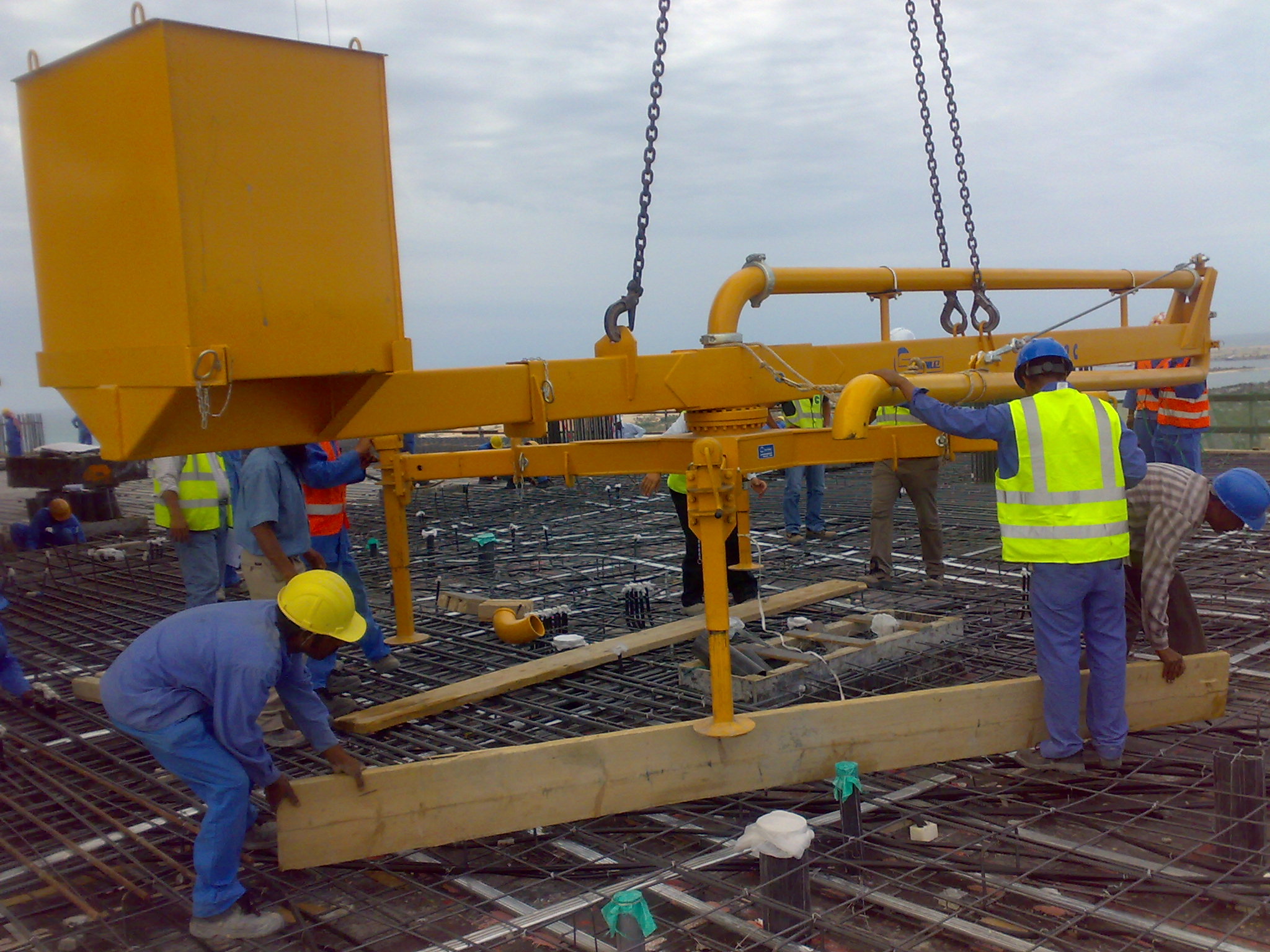

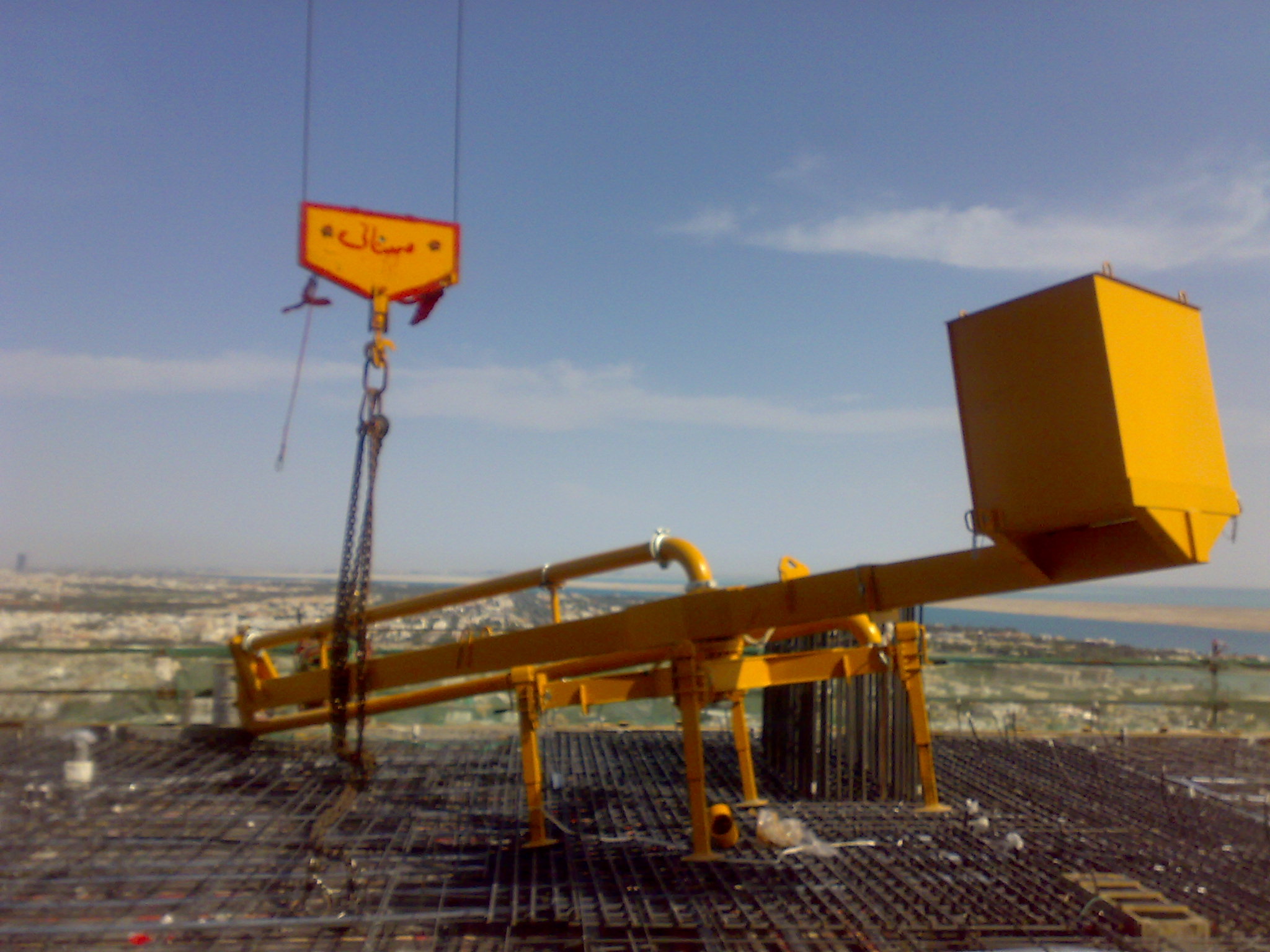

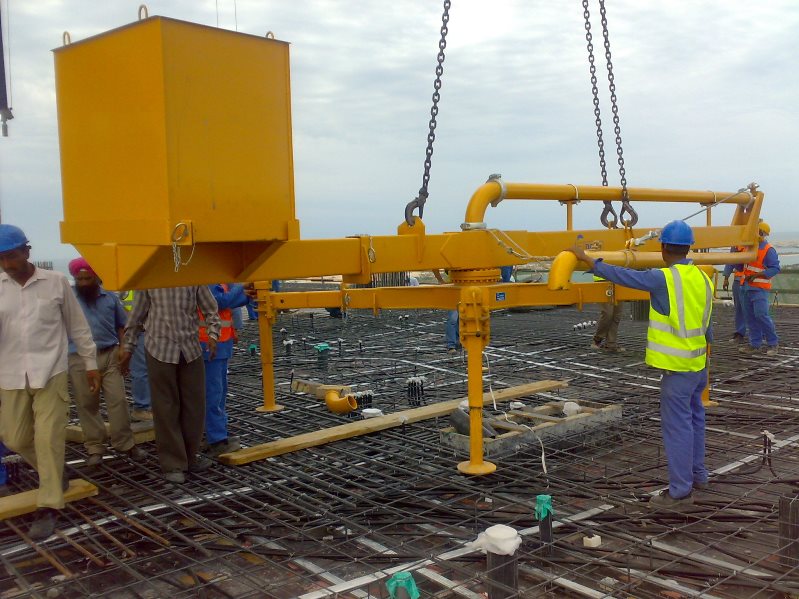

Application Gallery
